TMT BARS

Thermo mechanically treated steel, known as TMT steel, can be described as a new-generation-high-strength steel having superior properties such as weldability, strength, ductility and bendability meeting highest quality standards at international level.

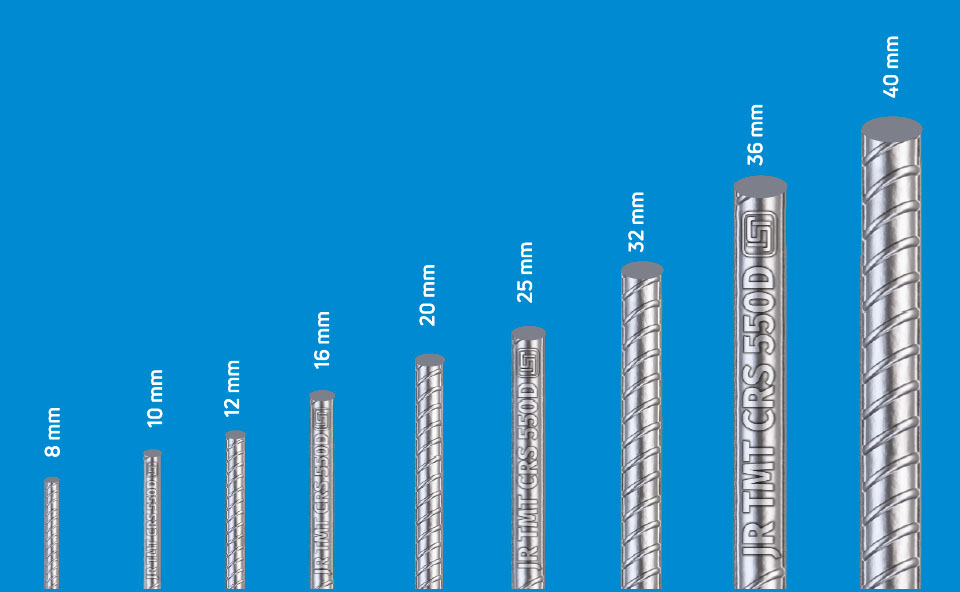

JR TMT RE-BARS is manufactured from superior quality billets manufactured in the same plant according to the requirement of the customers . At JR METAL our mantra is quality . JR TMT RE-BARS is available in FE-415 and FE-500 grades for sizes ranging between 8mm to 40mm . Special length orders for upto 22mtrs can be satisfied . The standard size of the brand is 40fts (12.2mtrs).

WEIGHT PARAMETERS
SIZE

Weight in KGs

Weight in KGs

(Per Meter)

(Per Rod)

8mm

0.395 – 0.400

4.819 – 4.880

10mm

0.598 – 0.614

7.290 – 7.490

12mm

0.860 – 0.868

10.490 – 10.589

16mm

1.516 – 1.530

18.490 – 18.666

20mm

2.420 – 2.459

29.500 – 29.990

25mm

3.790 – 3.810

46.200 – 46.480

32mm

6.220 – 6.270

75.880 – 76.494



JR TMT GRADE 415

Properties

Standard

Typical Values

Yield Strength N/ mm2 Min

415

450 – 470

Tensile Strength N/ mm2 Min

485

510 – 580

Stress Ratio (TS/YS) Min

1.16

1.14 – 1.23

Elongation %

14.5

15 – 19



JR TMT GRADE 500

Properties

Standard

Typical Values

Yield Strength N/mm2 Min

500

520 – 560

Tensile Strength N/mm2 Min

545

585 – 640

Stress Ratio (TS/YS) Min

1.10

1.12 – 1.14

Elongation %

12

12 – 17



JR TMT GRADE 415

JR TMT CHEMISTRY

Properties

BIS

JR TMT

Carbon (Max %)

0.30

0.17 to 0.23

Manganese

0.30 to 0.70

0.60 to 0.80

Sulphur (Max)

0.05

0.045

Phosphorous

0.05

0.045

FEATURES:
Resists fire: Withstands temperatures up to 500 degrees Celsius.
Resists corrosion: The TMT process gives the bar superior strength and good anti-corrosive properties.
Earthquake resistance: The soft ferrite-pearlite core enables the bar to bear dynamic and seismic loading.
Malleability: TMT bars are most preferred because of its flexible nature
Enables welding: They have fine welding features.
Bonding strength: External ribs running across the entire length of TMT bar give superior bonding strength between the bar and the concrete.
Cost-effective: A high tensile strength and better elongation value gives you great savings
